Manual to Auto LS swap info
Manual to Auto LS swap info
When doing a LS swap on a JK that was originally a manual you will need some extra pieces.
Despite what the internet may say the 6 speed center console is not as wide as a auto console. You can't just slap on a upper trim panel and call it a day.

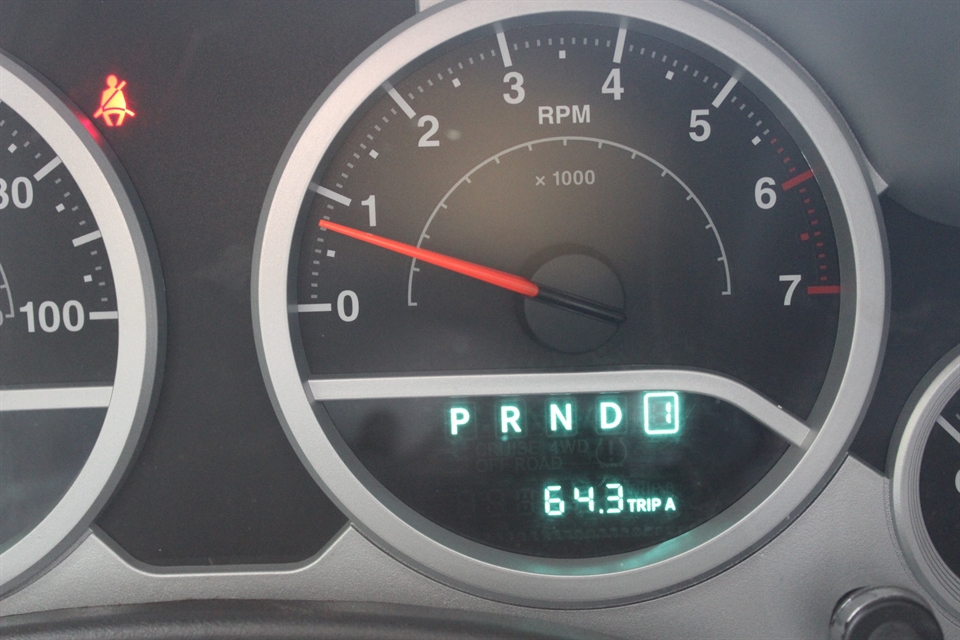

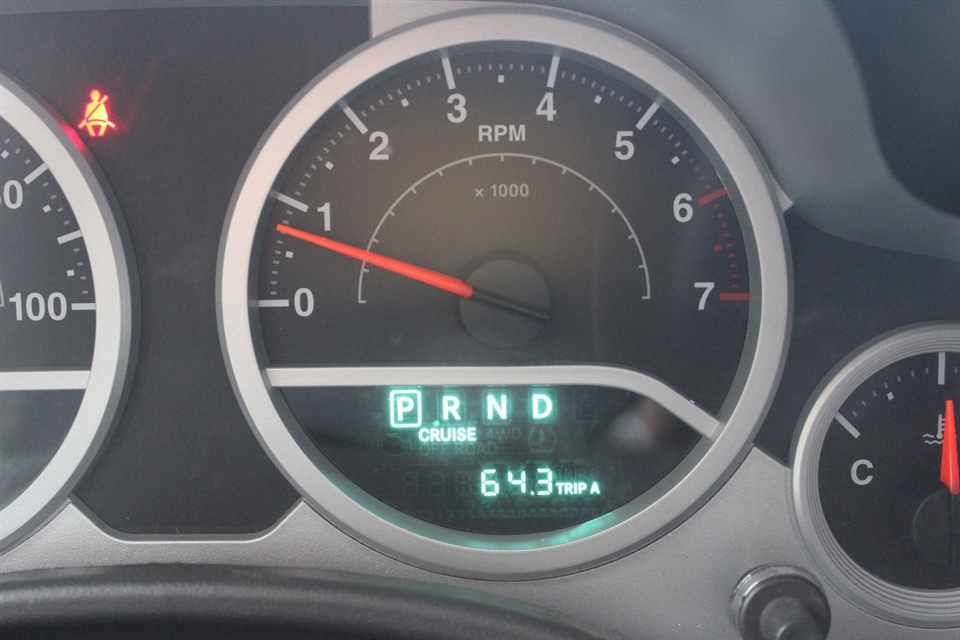

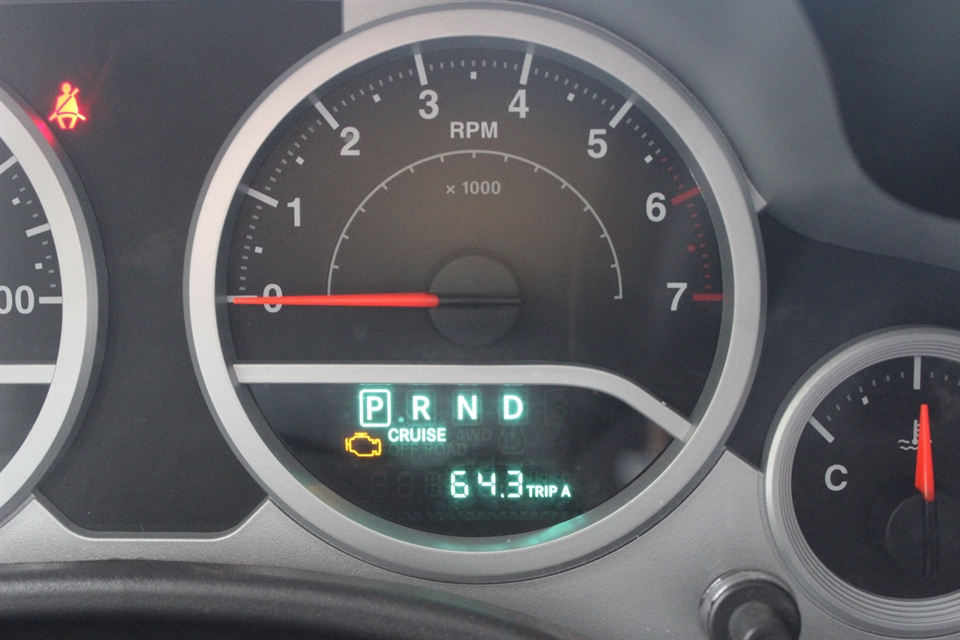

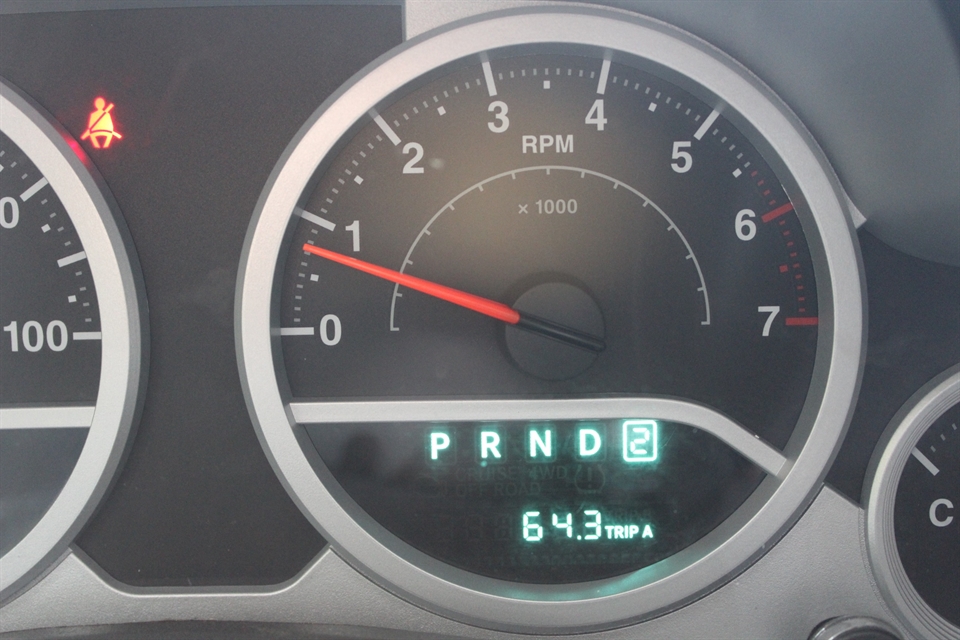

Here is a list of the main parts for a 07-10 Grey console. This will allow you have full range of normal gear selection as well as manual mode and 2nd gear start. PRNDM1
07-10 Auto Shifter 52060162AE
Low Bracket 52060490AE
Shifter Cable 52060164AD
NUT QTY-6 06104716AA
Console Base 1FG73BD5AB
Upper Console 1CG44XDVAB
For a 2011 JK we use a 2011 style shifter. This will allow you have full range of normal gear selection as well as manual mode and 2nd gear start. PRNDM1
2011 Auto Shifter 68069864AA
Shifter Bezel 68069850AB
Shifter Knob 68069865AB Chrome
Lockout cover 52125344AA
Baseplate Sled 52060490AE
Shifter Cable 68067439AE
Console (black) 1PU23DX9AA
Nut x6 06104716AA

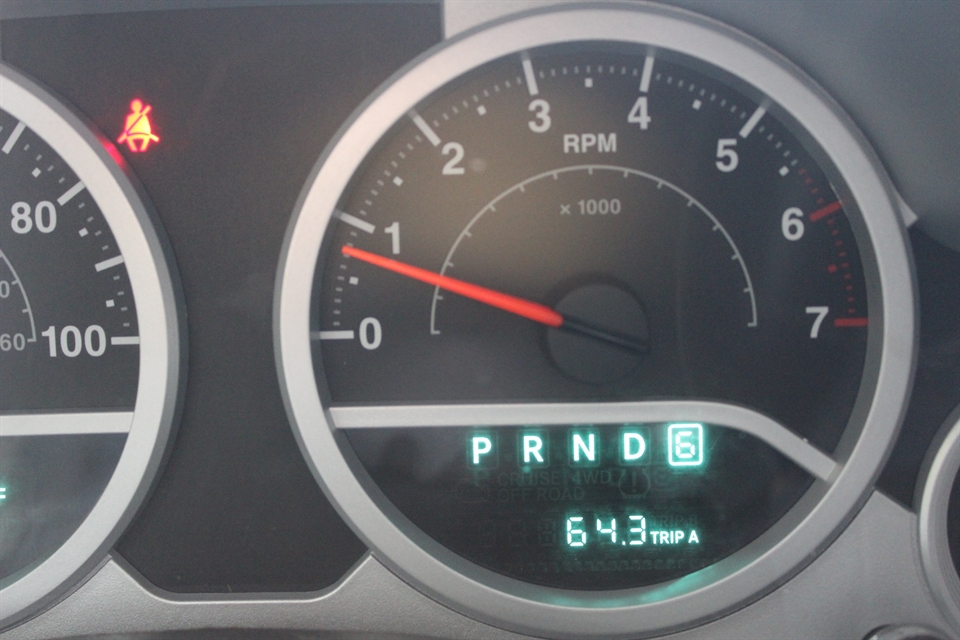

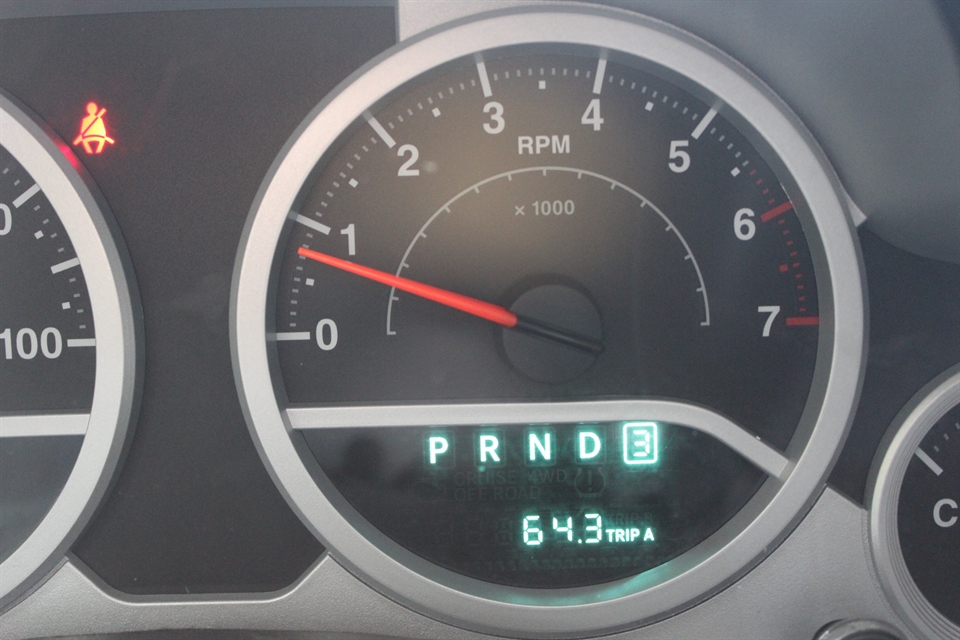

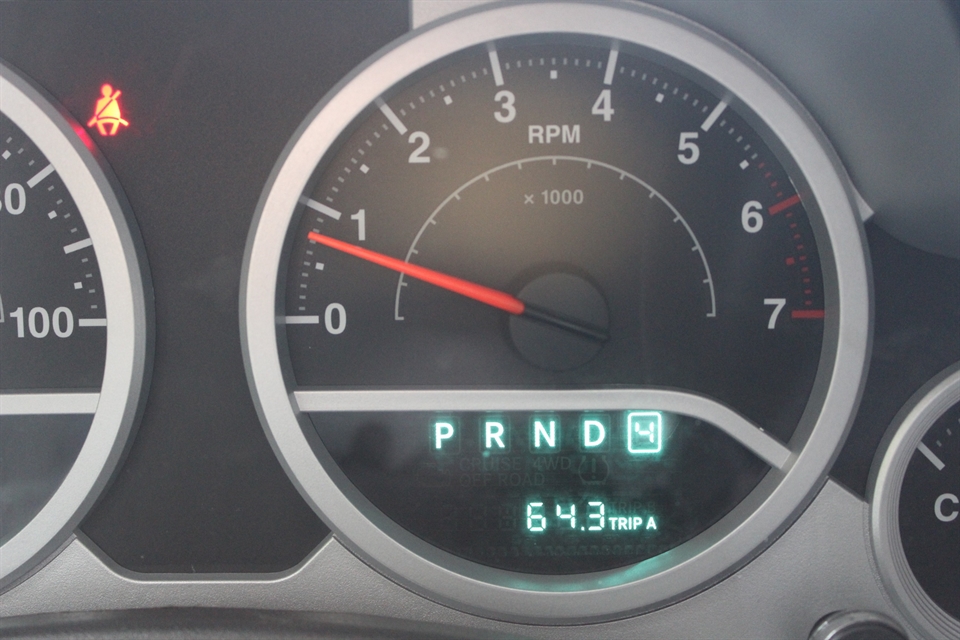

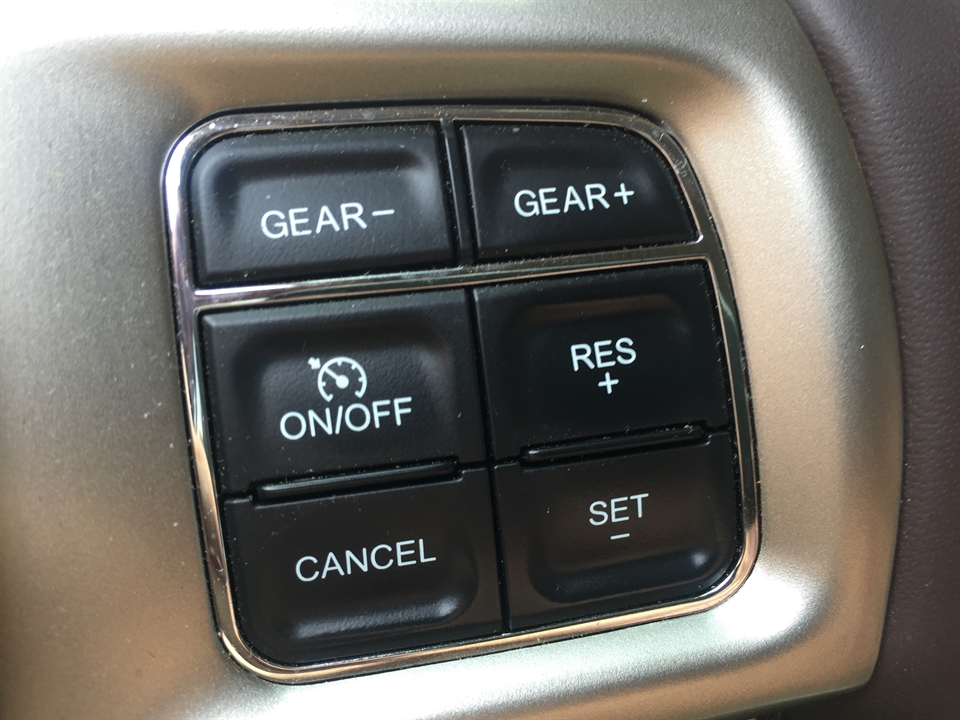

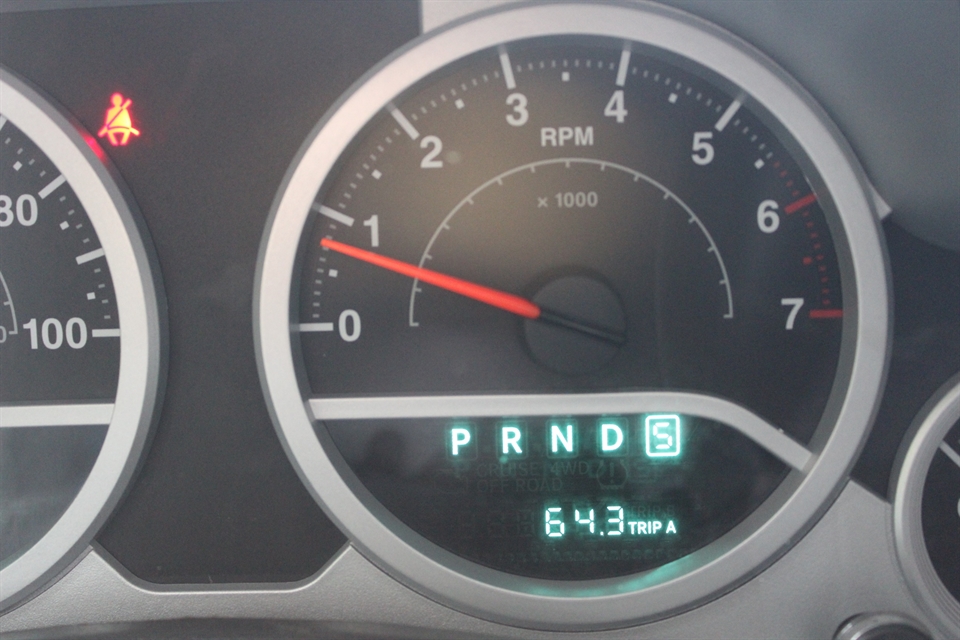

For a 2012 - 2018 JK we use a 2012+ style shifter. This will allow you have PRND and a Manual position for TAP shift where you can use the "bump shifter" to TAP UP and Down.
2012+ Auto Shifter 68069861AC
Shifter Bezel 52125252AC
Shifter Knob 68069865AB Chrome
Lockout cover 52125344AA
Baseplate Sled 52060490AE
Shifter Cable 68067439AE
Console (black) 1PU23DX9AA
Nut x6 06104716AA

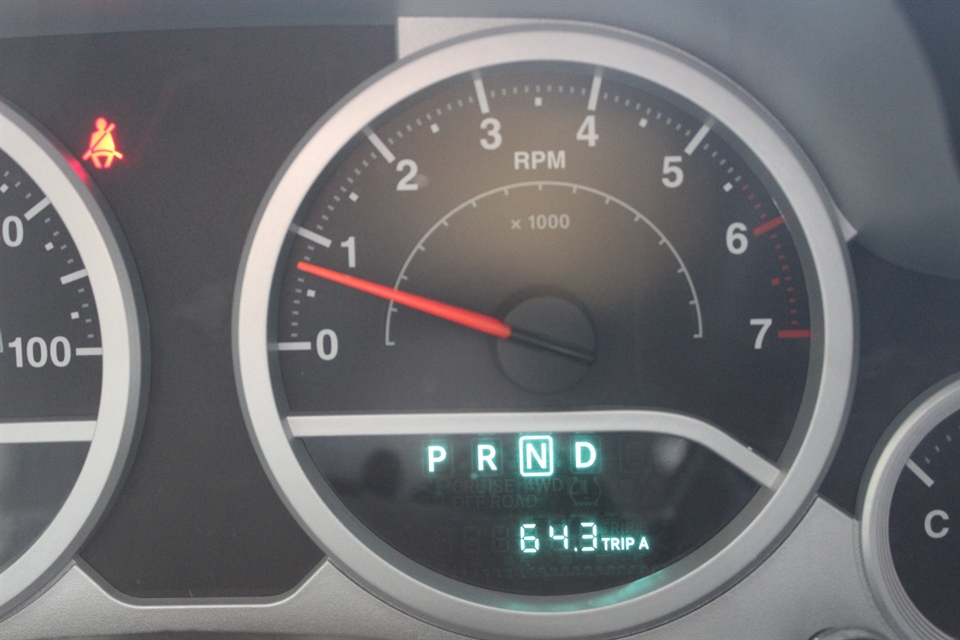

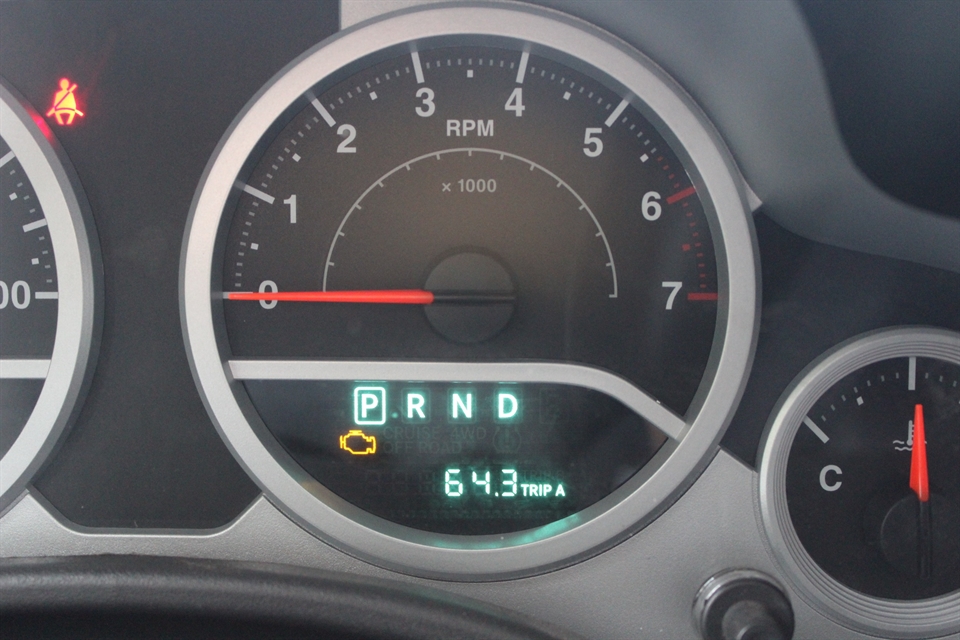

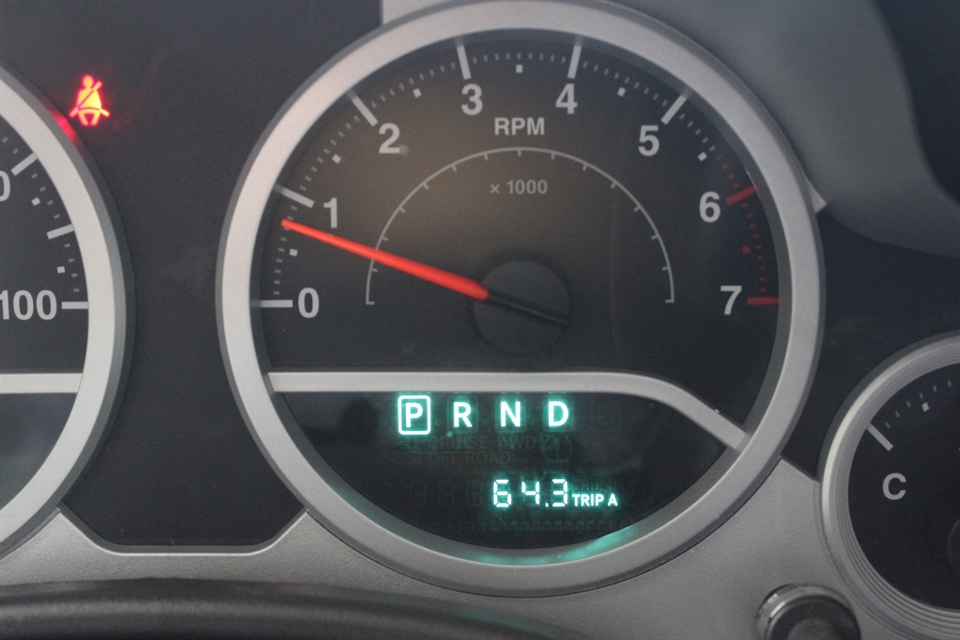

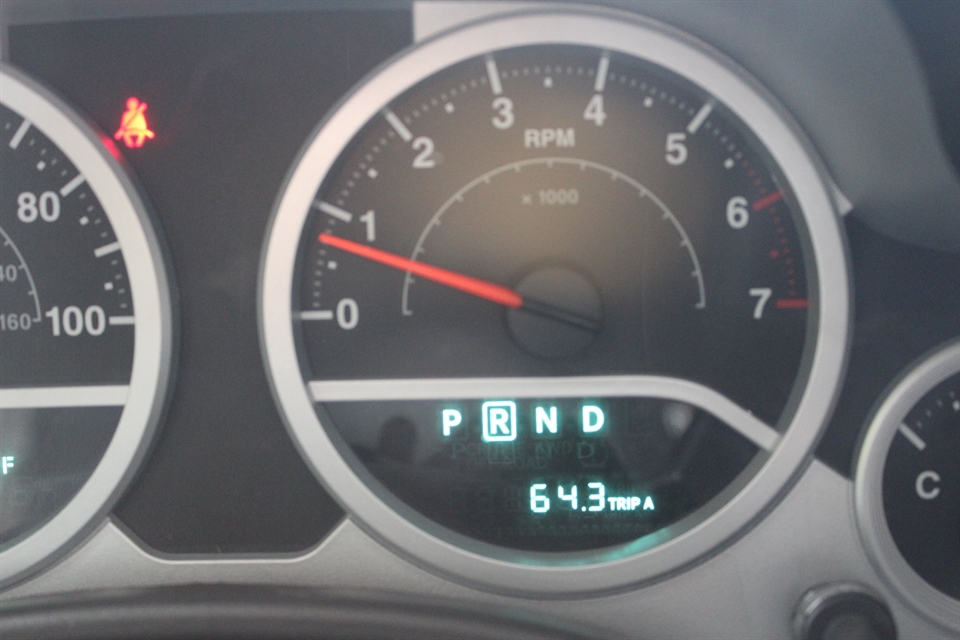

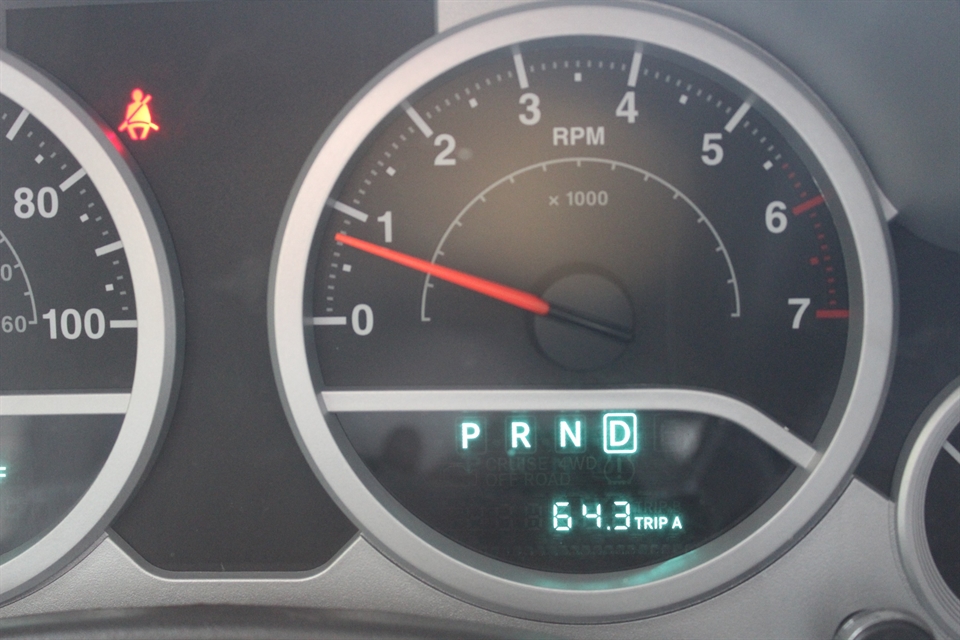

All the 07-11 JKs that we have seen have the harness built into the jeep and all you have to do is plug them in and everything will work including the BTSI Brake transmission shift interlock.
** If you have a 2012-2018 JK you need need to purchase a Auto shifter pigtail harness from us to splice into the Jeep so ti will communicate. **
You can also get the cable the runs up to the ignition lock cylinder but we usually don't do this extra step. It just keeps you from turning the key all the way off with the vehicle in gear.
